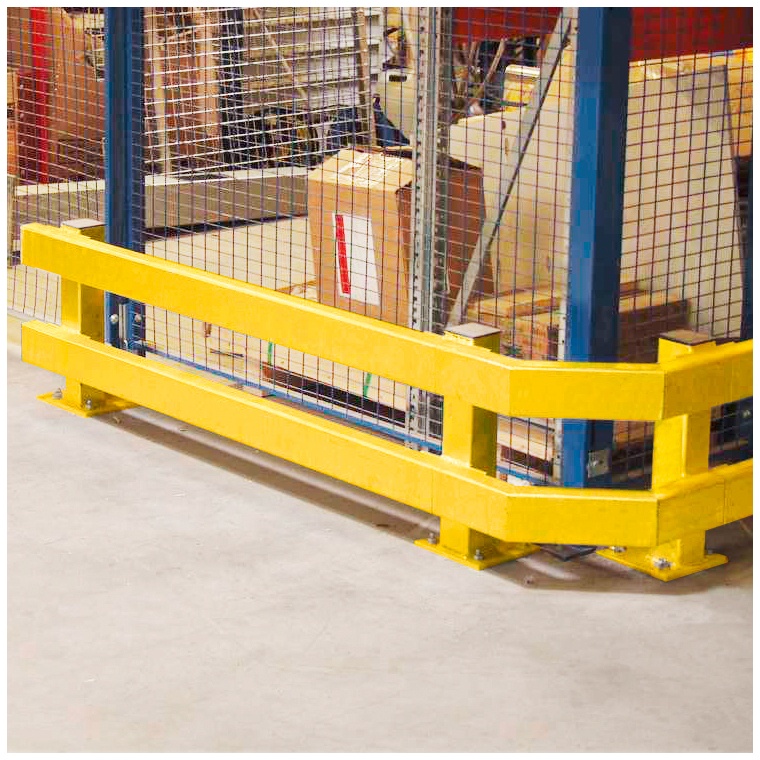

Extremely resilient general purpose modular barriers.

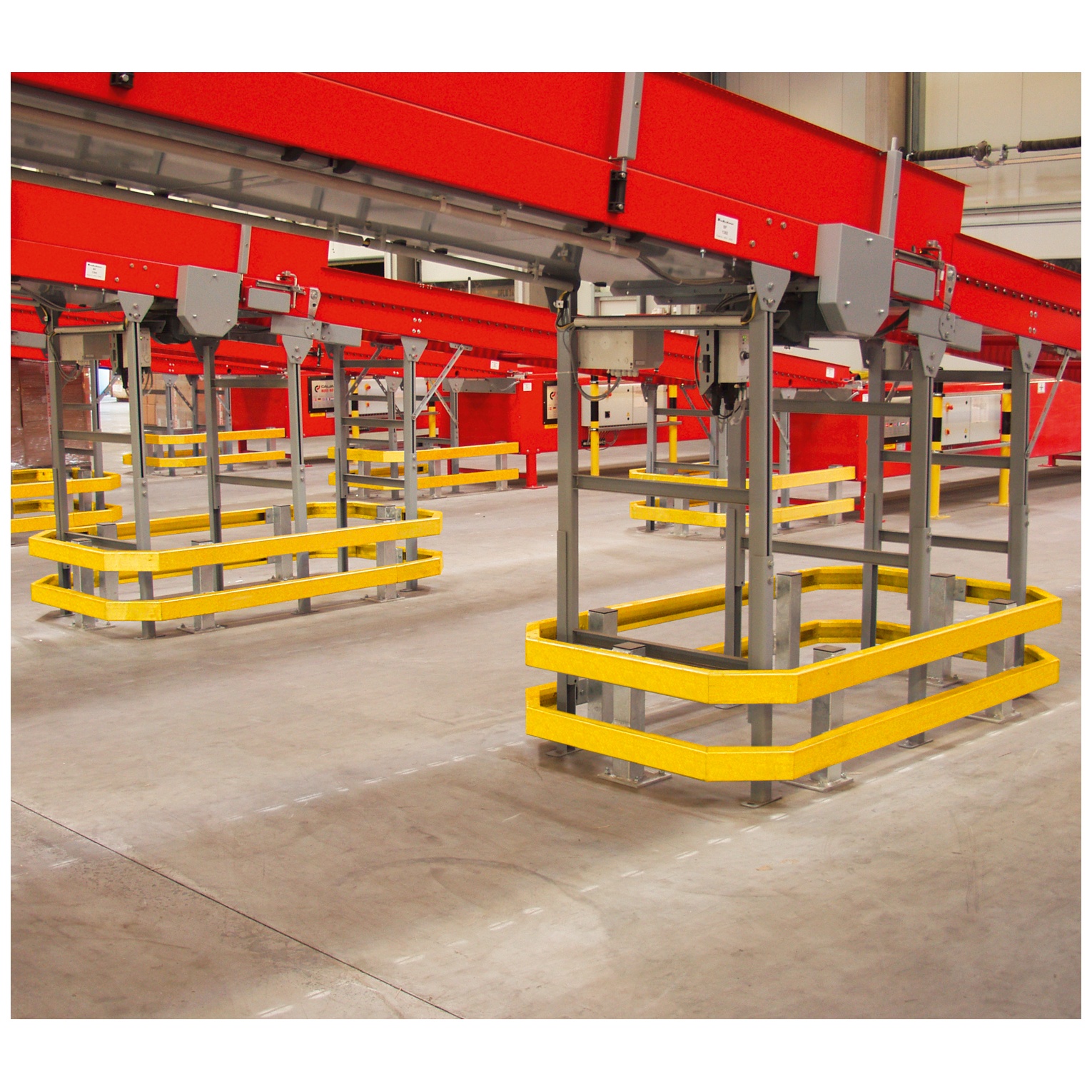

Ideal for protecting assets, machinery/plant hardware or pedestrian areas from potential traffic collisions.
These barriers can protect from very heavy collisions.

View full description

Information
Dimensions

Information

Extremely resilient general purpose modular barriers.
Ideal for protecting assets, machinery/plant hardware or pedestrian areas from potential traffic collisions.
These barriers can protect from very heavy collisions.

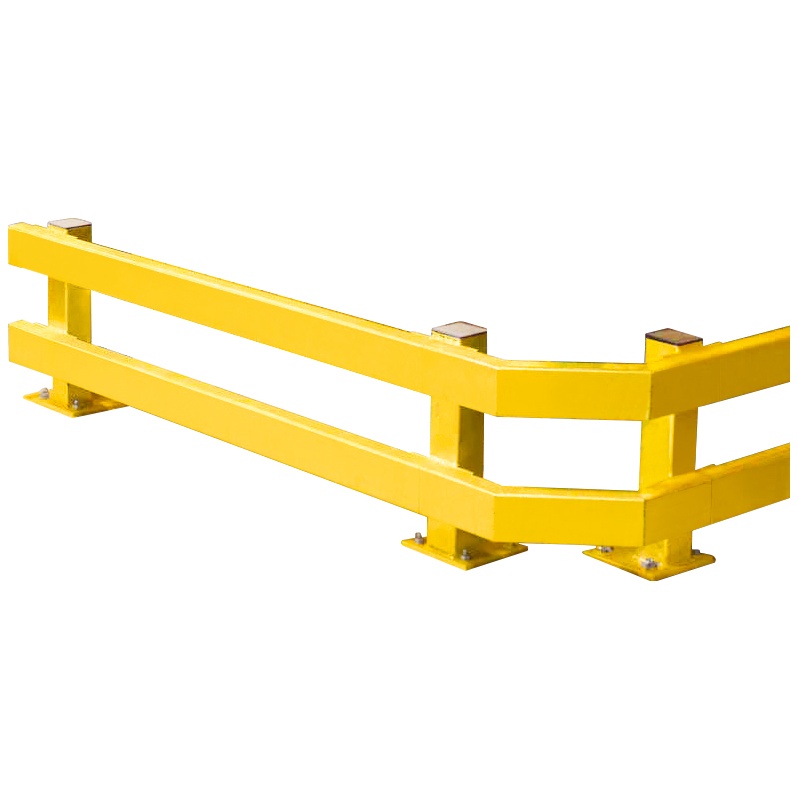

The highly modular design allows the barriers to be easily extended or modified.

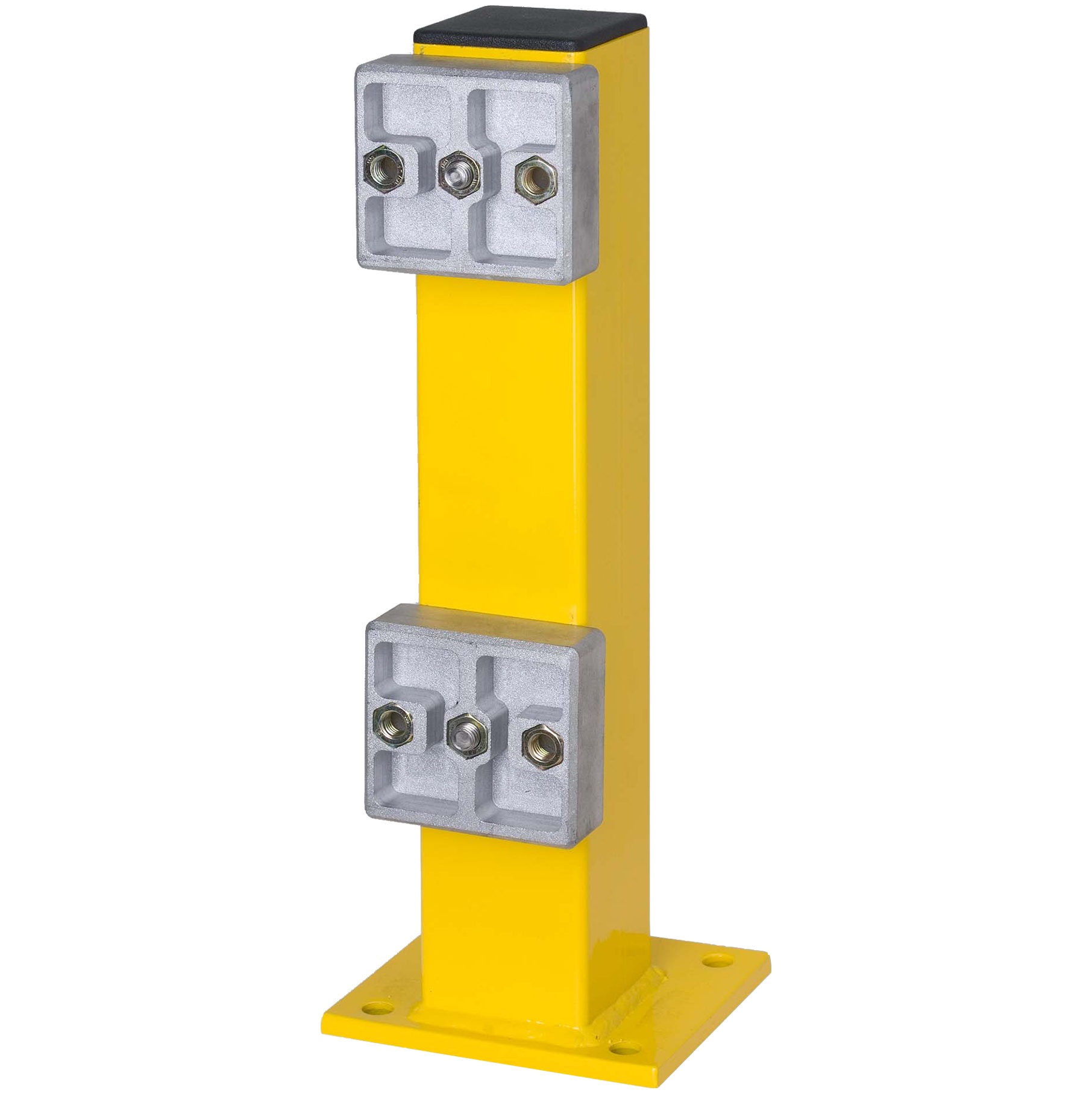

Posts are 80x80mm top grade steel square tube, 465mm high.
Rails are 100x40mm top grade steel C-Section tube.
All steel square tubing has 3mm thickness. Base plates are 10mm thick.
Finished in durable high visibility yellow powder (indoor or outdoor models) or a zinc coloured finish (outdoor models only).

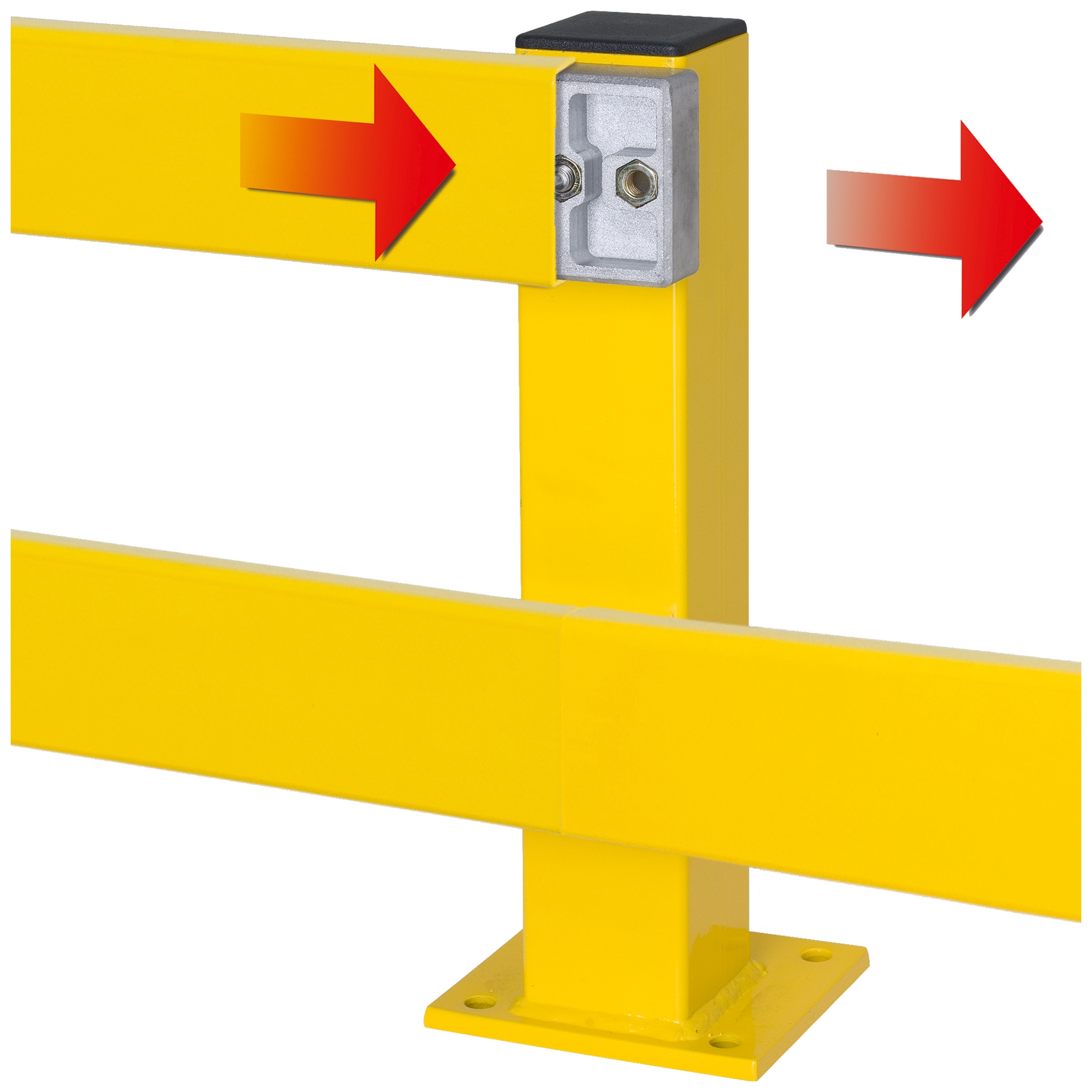

The rails are slid onto the mounting plates and held in place by the rear lips of the rail, wrapping around the plate on the support post. This allows for very easy installation.
Support posts are easily fixed to the floor with 4 plug bolts or 4 through bolt anchors.
Fixings aren't included with support posts. One pack of plugs or bolts (listed below) is needed per post.

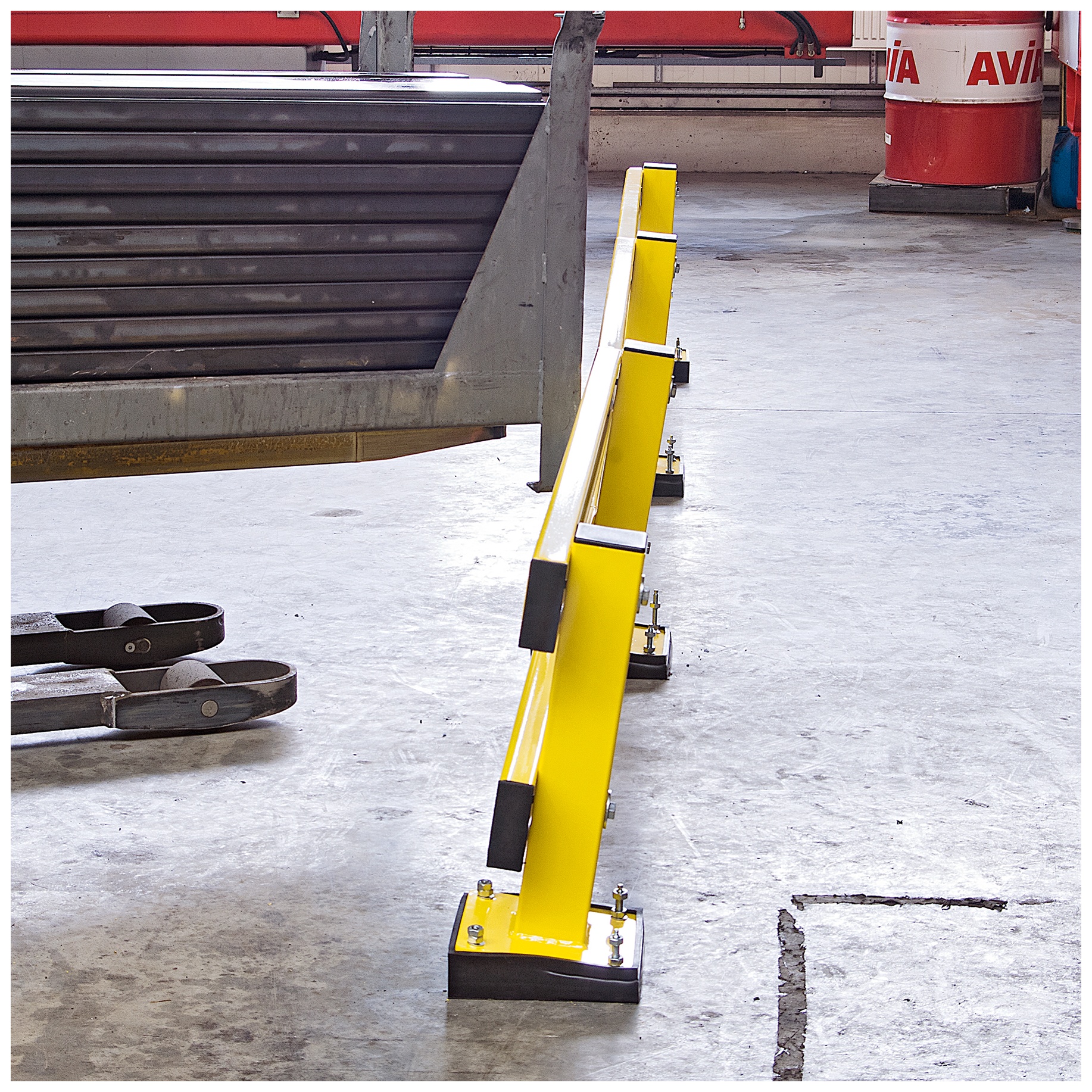

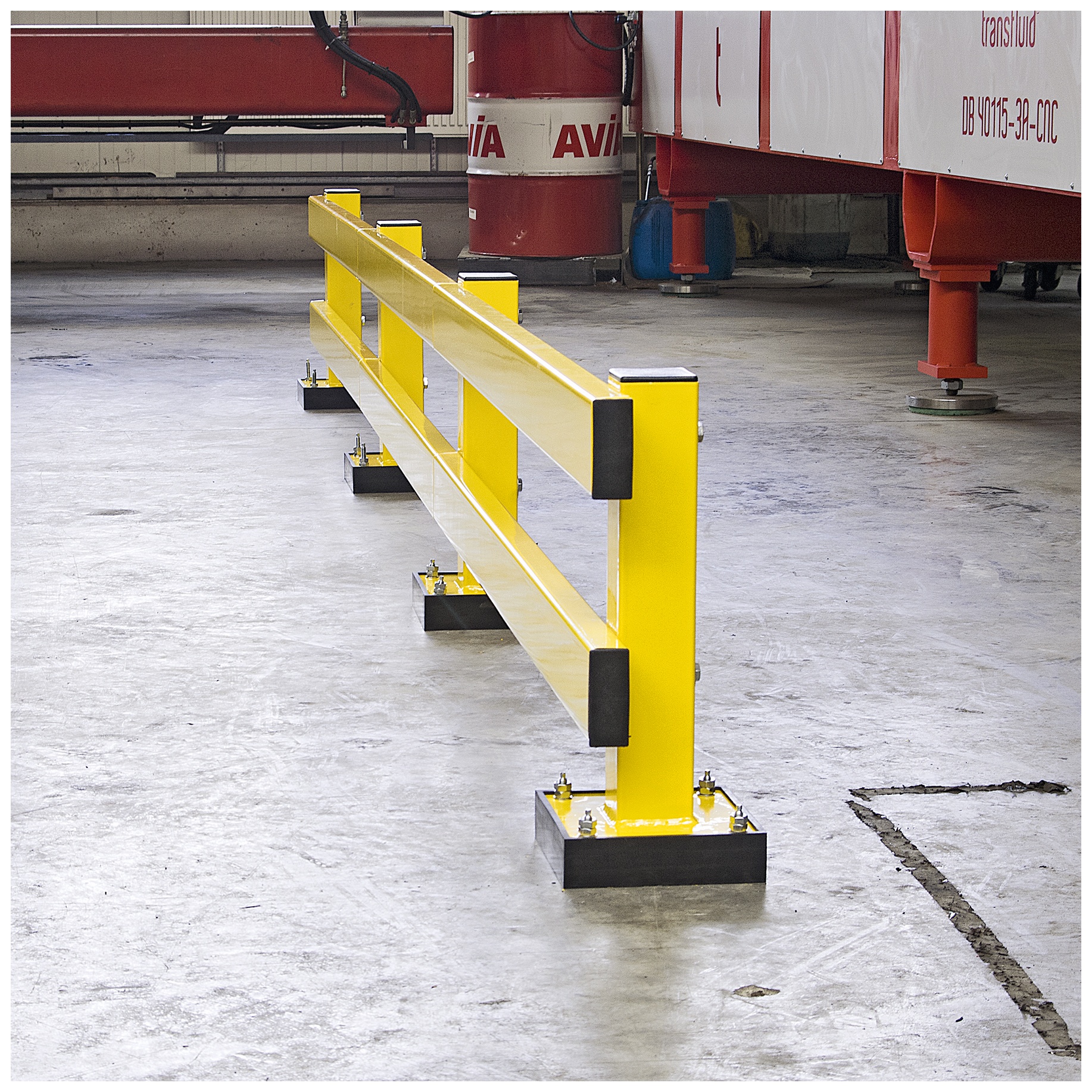

Shock absorbing pads are used to upgrade your support posts to FLEX posts, offering a 10° yield angle to reduce damage to vehicles, barriers and floor in case of collision. FLEX posts require chemical anchor fixings.
Note that chemical anchor fixings are only available in packs of 8, suitable for 2 posts per pack. These will secure the FLEX post, with no other fixings required.

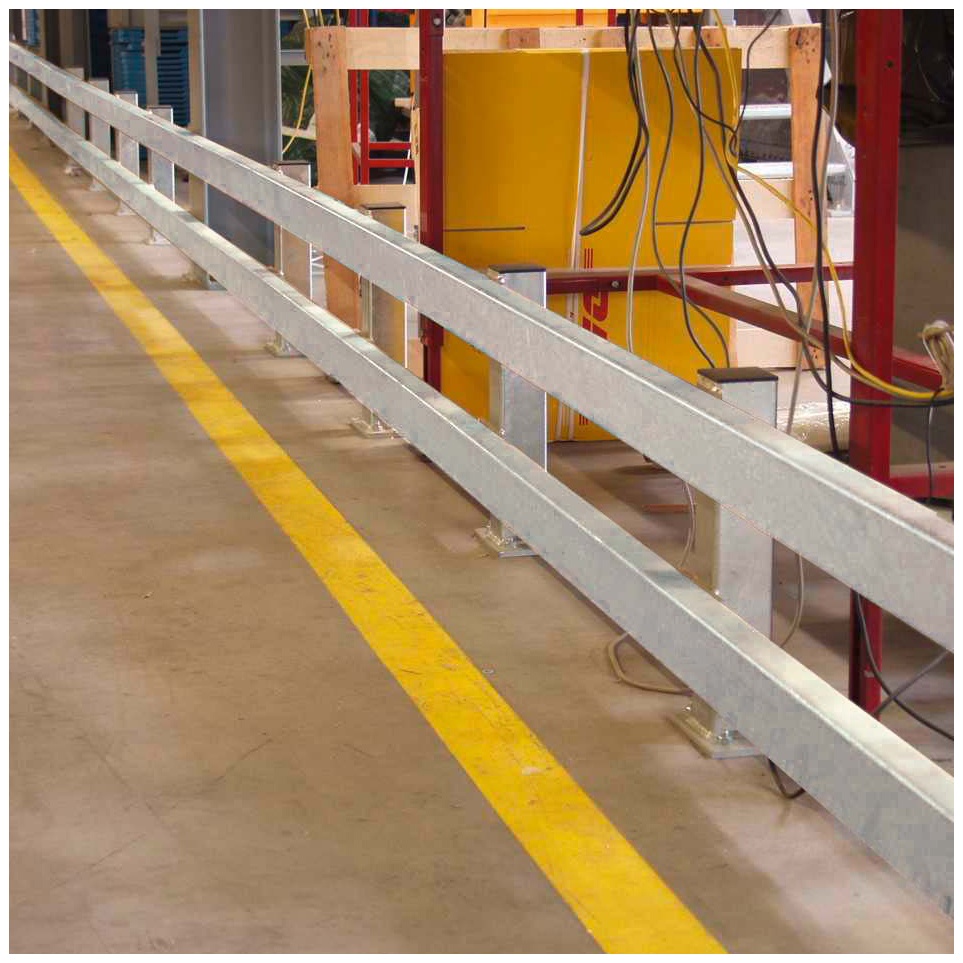

The "Indoor & Outdoor" models are hot dip galvanised for complete weather resistance.
"Indoor Only" models are not suitable for use outdoors. If you intend to use these barriers outdoors, please order "Indoor & Outdoor" usage models.
