Clip-Fit Boltless Shelving and Tray Kit A

  • High density shelving storage system supplied with shelf trays, see below for tray dimensions.
  • Trays have a removable paper label and front cover for identification and/or attaching bar labelling of component location.
  • All trays are light blue in colour.
View full description

Clip-Fit Boltless Shelving and Tray Kit A
Clip-Fit Boltless Shelving and Tray Kit A
Clip-Fit Boltless Shelving and Tray Kit A
Ex VAT
£803.00
Was £0.00
SAVE
Inc VAT
£963.60
£0.00
Product Code: AE241
FREE UK Mainland Delivery
Delivery:
5 - 7 working days
N. Ireland, Highlands & Islands - Contact us for a price

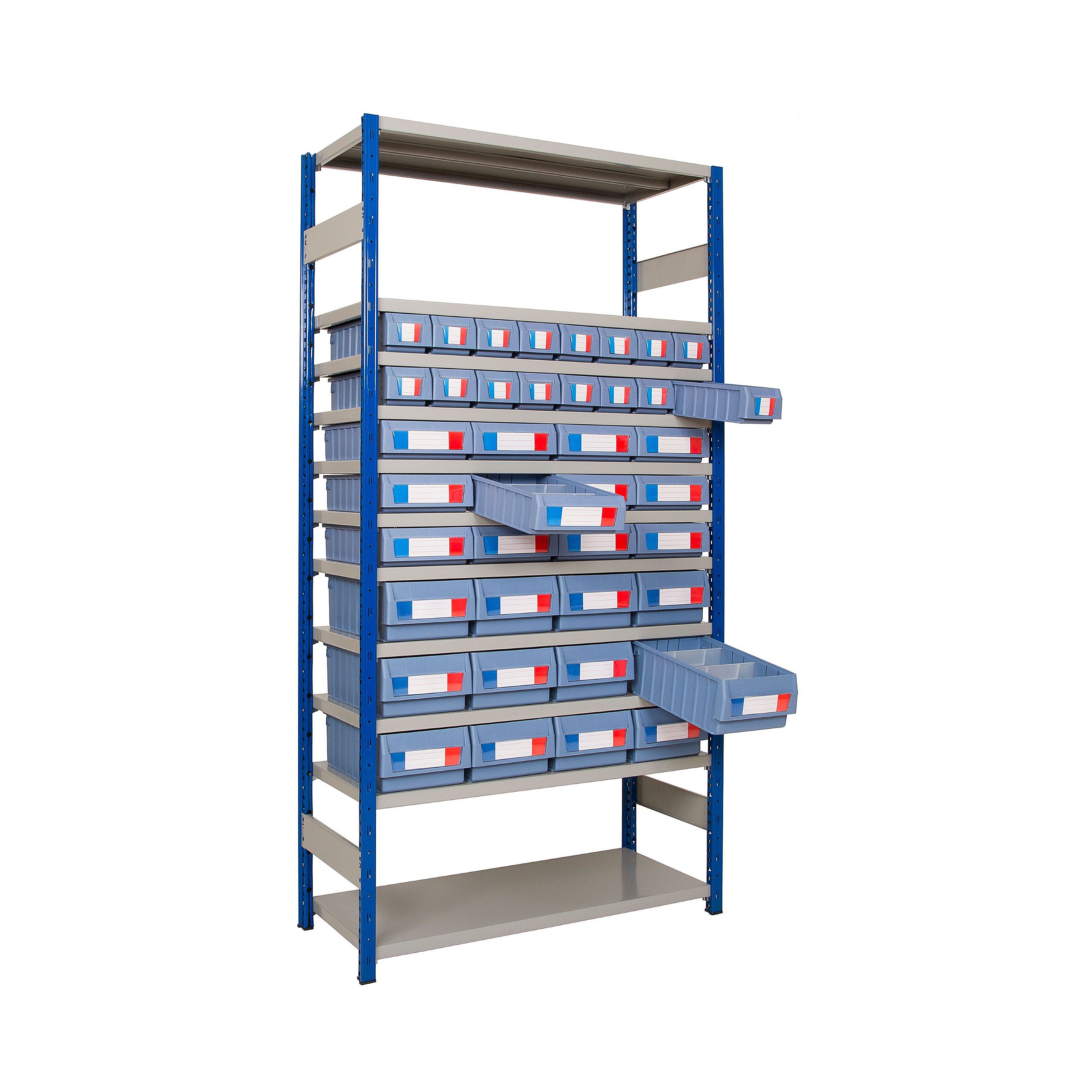

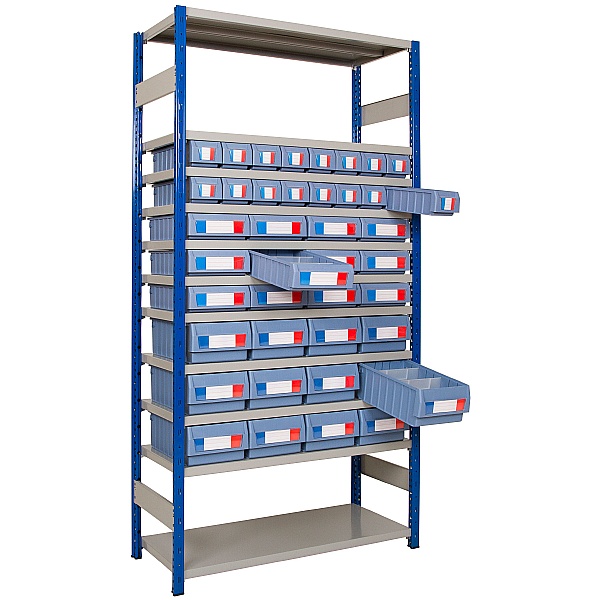

Clip Fit shelving system supplied complete with 40 shelf trays in 3 different sizes. Provides easy access small parts storage, ideal for use within storerooms, assembly and workshop environments.

  • High density shelving storage system supplied with shelf trays, see below for tray dimensions.
  • Trays have a removable paper label and front cover for identification and/or attaching bar labelling of component location.
  • All trays are light blue in colour.
  • Shelves are white in colour.
  • The shelving bay has an individual shelf load of 200kgs with a maximum bay capacity of 2500kgs UDL.

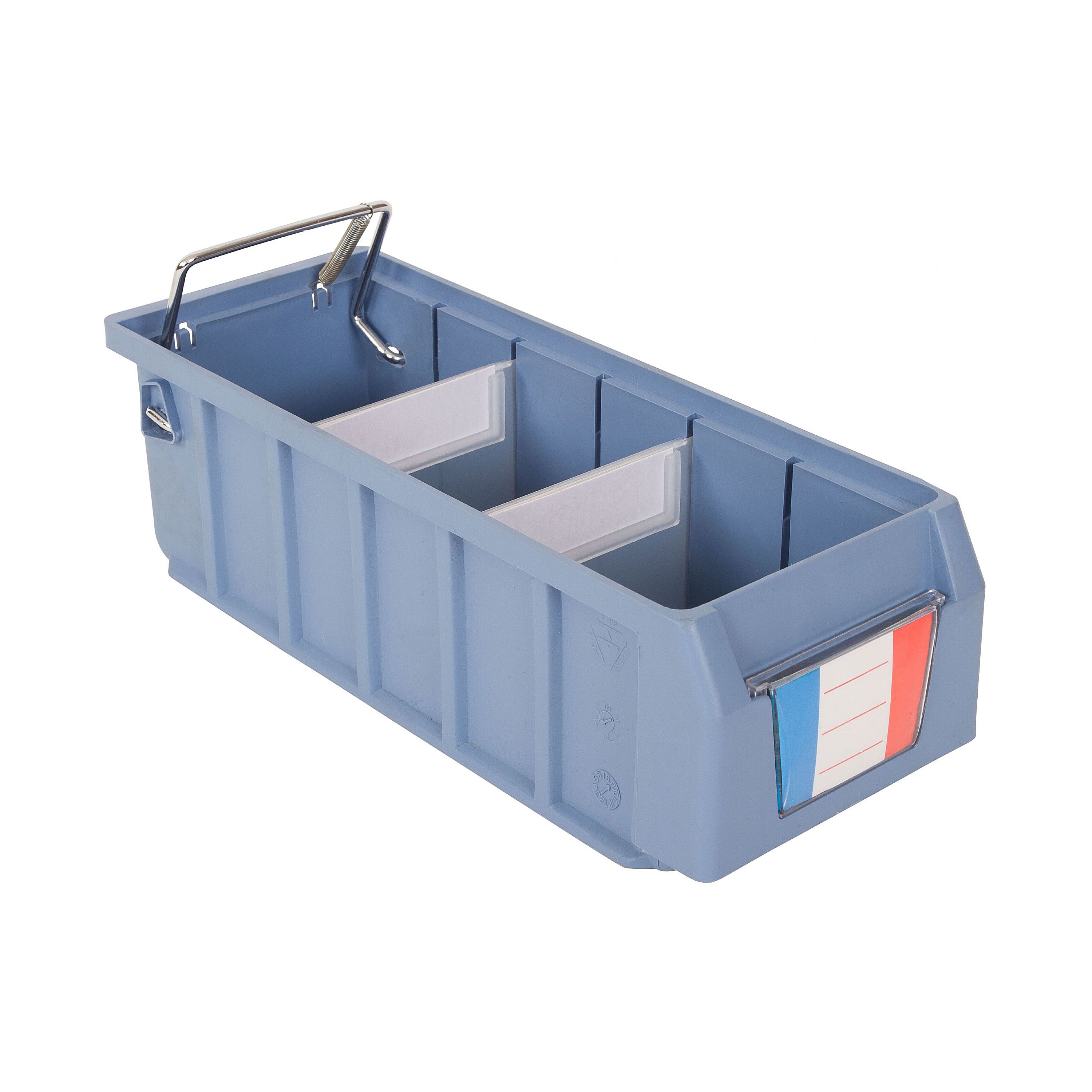

  • Shelf trays have a spring loaded handle at the back of the tray as standard.
  • The spring loaded handle also acts as a shelf stop ensuring that each tray can be withdrawn from the shelf to provide around 90% clear picking depth.
  • Translucent shelf tray dividers to create internal tray compartments are sold separately – see below.
  • This shelving system is easily extended by adding further Clip-Fit Extension bays to create a full storeroom setup.
  • Shelf height can be adjusted to suit storage needs.
  • Shelving unit is supplied flat packed for easy boltless self-assembly using a rubber mallet (not supplied).
  • 5 year manufacturers guarantee.

Please note these products are made especially to your request and cannot be cancelled once ordered. Non returnable unless damaged or faulty. Please call our friendly sales team for advice when placing your order if you are unsure 0333 234 4233.

Standard delivery is to ground floor kerbside. Please contact us on 0333 234 4233 if there are vehicle or access restrictions on site.
Dimensions   mm
Width   1000
Depth   300, 400 or 500
Height   2000
Shelf Load   200kg
Max Bay load   2500kg

Dimensions mm  Tray 1   Tray 2   Tray 3
No of Trays   16 12 12
Width   177 234 234
Depth   300, 400 or 500   300, 400 or 500   300, 400 or 500
Height  90 90 140
