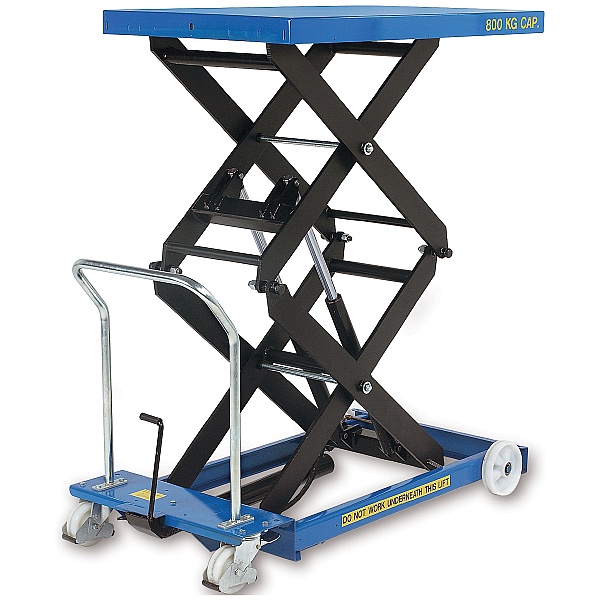

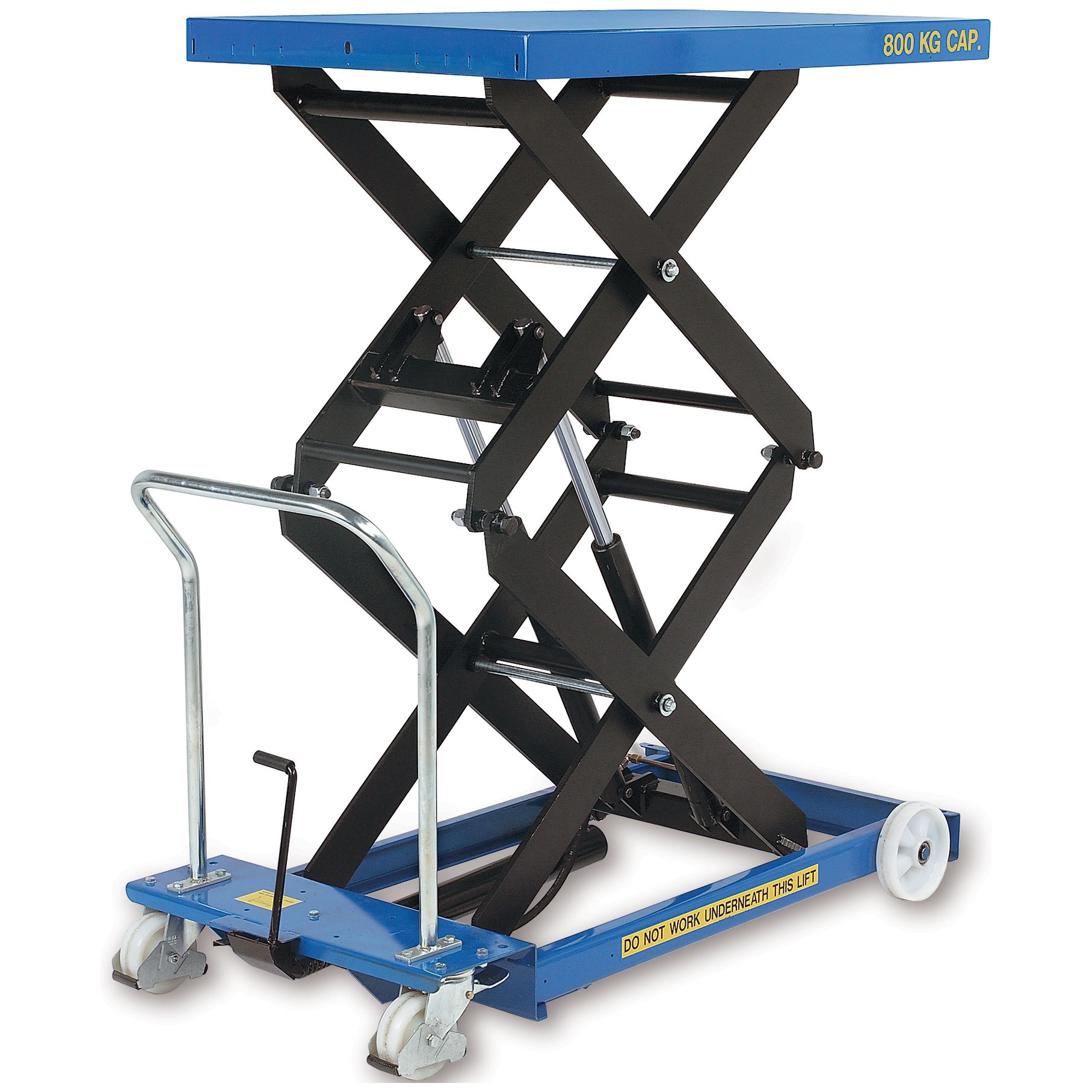

Elevation Double Scissor Lift Tables - Heavy Duty
- Manufactured in the UK
- Heavy duty double scissor lifts
- Robust construction
View full description
- Manufactured in the UK
- Heavy duty double scissor lifts
- Robust construction
- Manoeuvrable
- 500kg or 800kg weight capacity available
- Can be used safely at any height
- Manual or battery electric operation
- Fitted with an overload valve and slow lowering valve to control lowering speed
- Heavy duty arm, bearings and hydraulics
- Nylon bushes fitted at all arm end hinge points
- Folds flat for easy transportation and storage

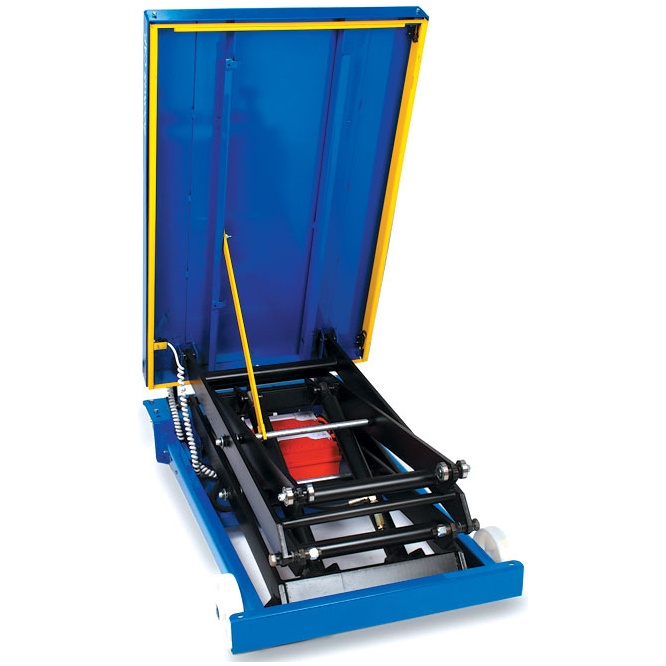

- Unique lift up table top allows safe and easy maintenance – can only be lifted when table is the closed position
- Heavy duty castor wheels – one fitted with a total stop brake
- Conforms to EU Standards BSEN 1570 and BS:5323:1980
- One year parts & labour warranty

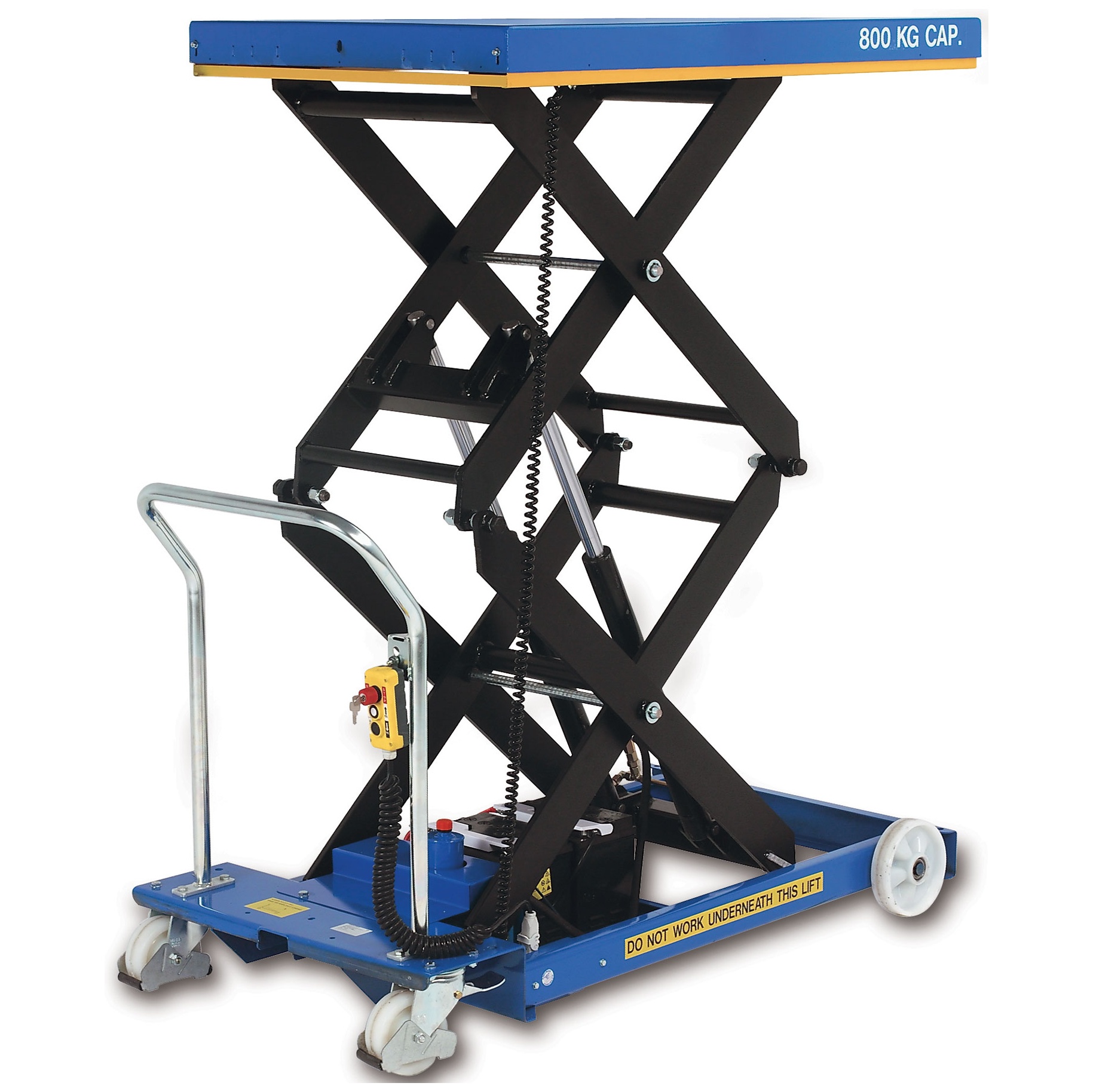

Battery Electric Operated Model
- Includes 12v traction battery and charger
- Safety cut-off bar fitted to the underside of the platform, which prevents table from lowering in the case of an obstruction
- Remote push button control up/down operation
- Emergency stop switch
- Safe design plug-in charger
- Strong electrical flex
- Electrical contacts/motors conform to EQ1570/ EN 60529
Due to the size and weight of these items, they are shipped on a pallet and offloading facilities will be required. If you need delivery to kerbside or inside your premises, please call us for a price.
Please note that they are made to order and non returnable unless faulty or damaged. In the event of any damages, please contact Equip4Work immediately. If you have any queries or specific requirements, please do not hesitate to contact our sales team on 0333 234 4233
| Dimensions mm | B788 | B788E | B789 | B966 |
| Platform Width | 840 | 840 | 840 | 840 |
| Platform Length | 1350 | 1350 | 1350 | 1350 |
| Overall Width | 860 | 860 | 860 | 860 |
| Overall Length | 1650 | 1650 | 1650 | 1650 |
| Closed Height | 490 | 490 | 490 | 490 |
| Raised Height | 1900 | 1900 | 1900 | 1900 |
| Handle Height | 1010 | 1010 | 1010 | 1010 |
| Wheel Diameter | 150/200 | 150/200 | 150/200 | 150/200 |
| Weight Capacity | 500kg | 500kg | 800kg | 800kg |
| Approx Unit Weight | 306kg | 352kg | 315kg | 363kg |
| Operation | Manual | Battery | Manual | Battery |
