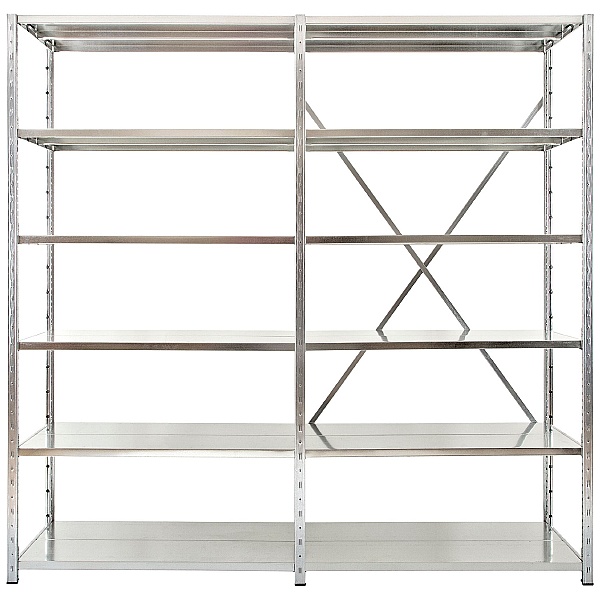

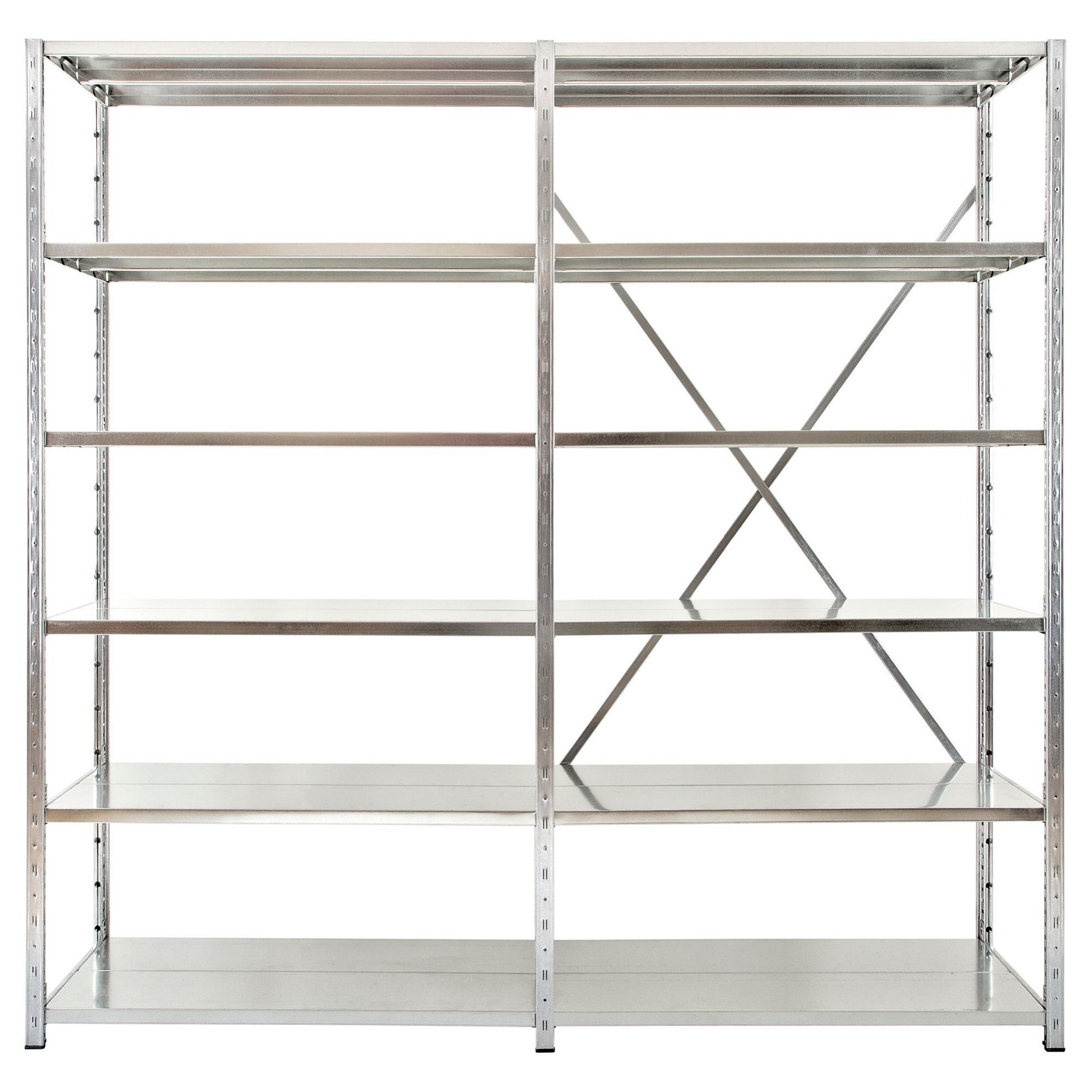

Galvanised Clip-Fit Boltless Shelving System
- Very adaptable shelving unit that is quick to build, popular within industrial environments.
- Made to last as it is rust resistant and can be used in damp areas.
- The shelving bay has a maximum bay capacity of 2500kgs, with individual shelf load up to 300kg UDL.
View full description
Shelving units made from steel and coated in zinc to create a hard wearing galvanised finish. This galvanised shelving system is rust resistant and ideal for use in damp or humid areas.
Please note these products are made especially to your request and cannot be cancelled once ordered. Non returnable unless damaged or faulty. Please call our friendly sales team for advice when placing your order if you are unsure 0333 234 4233.
Additional height can be added. For further information please contact our sales team on 0333 234 4233.
Standard delivery is to ground floor kerbside. Please contact us on 0333 234 4233 if there are vehicle or access restrictions on site.
- Very adaptable shelving unit that is quick to build, popular within industrial environments.
- Made to last as it is rust resistant and can be used in damp areas.
- The shelving bay has a maximum bay capacity of 2500kgs, with individual shelf load up to 300kg UDL.
- Shelving height is 2000mm high, comes with 6 shelves as standard.
- Additional shelves are available - see related items below.
- This modular shelving system is easy to extend by adding further Galvanised Clip-Fit Boltless Extension bays as well as the Extra Wide Galvanised Clip-Fit Boltless Shelving System to create a full storeroom setup - see related items below.
- Back and side cladding to prevent access to shelves from rear or side and to further secure stored items are available to purchase separately - see related items below.
- Starter bay supplied with 4 x uprights, 6 x shelves and all required fixings, plastic feet and back cross brace.
- Extension Bays supplied with 2 x uprights only, 6 x shelves and all required fixings.
- A cross bracing is required at the back of every 4 bays for additional stability.
- Shelving unit is supplied flat packed for easy boltless self-assembly using a rubber mallet (not supplied).
- 5 year manufacturers guarantee.
Please note these products are made especially to your request and cannot be cancelled once ordered. Non returnable unless damaged or faulty. Please call our friendly sales team for advice when placing your order if you are unsure 0333 234 4233.
Additional height can be added. For further information please contact our sales team on 0333 234 4233.
Standard delivery is to ground floor kerbside. Please contact us on 0333 234 4233 if there are vehicle or access restrictions on site.
Dimensions | mm |
Width | 700 or 1000 |
Depth | 200, 300, 400, 500, 600 or 800 |
Height | 2000 |
Shelf Load | 300kg |
Max Bay Load | 2500kg |
Shelf Load | 200D | 300D | 400D | 500D | 600D | 800D |
700W | 100kg | 150kg | 200kg | 250kg | 300kg | 300kg |
1000W | 70kg | 105kg | 140kg | 175kg | 210kg | 280kg |
All measurements are in mm.
