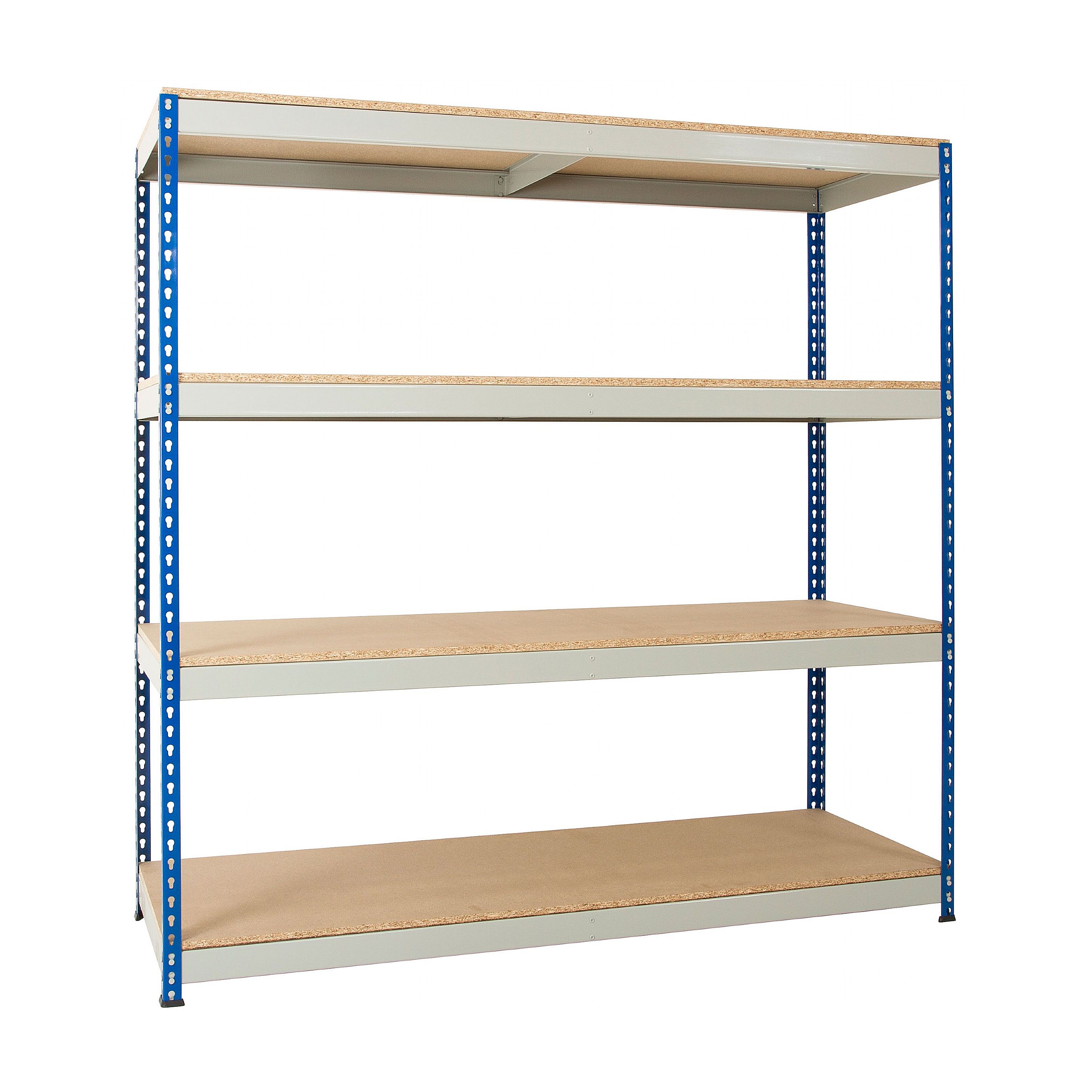

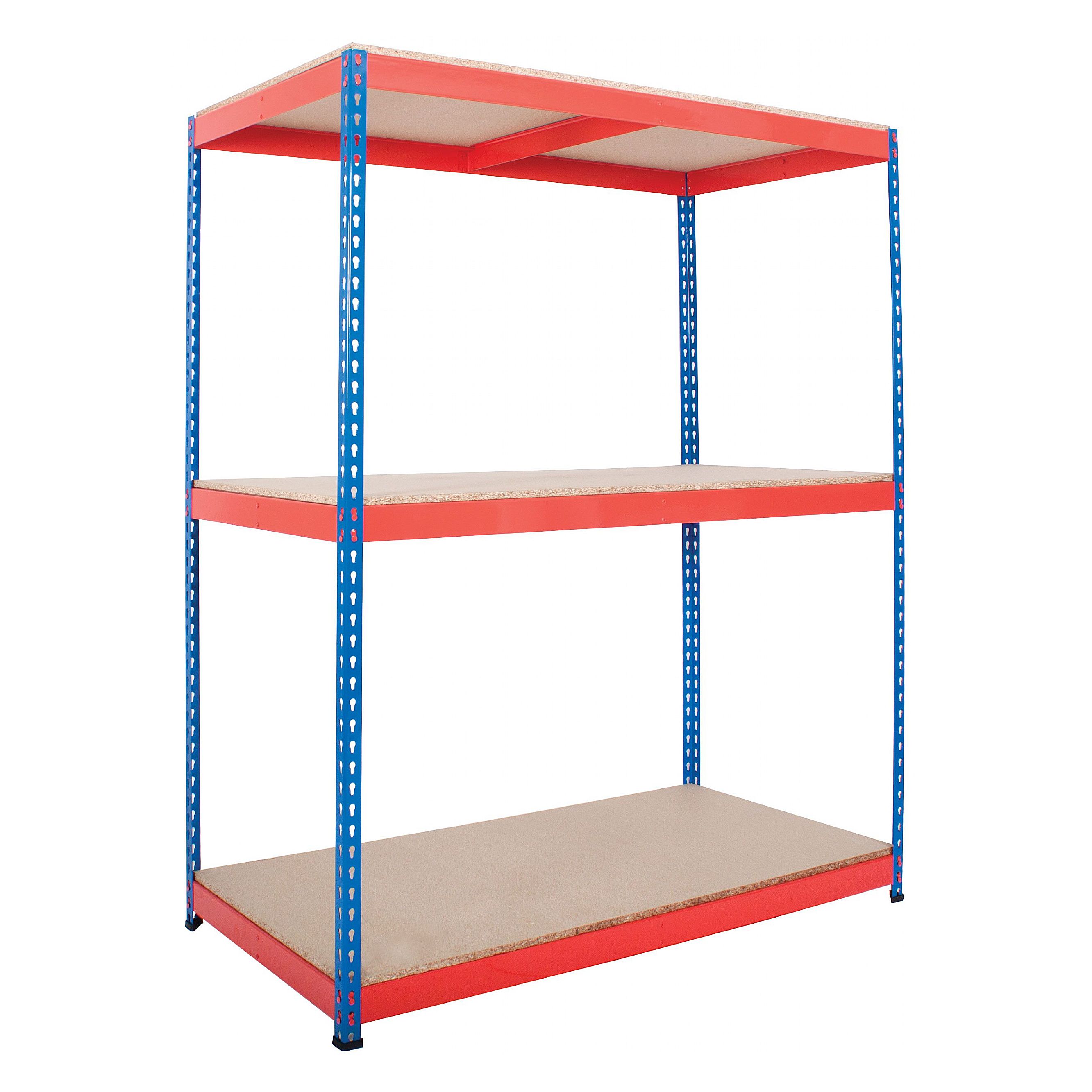

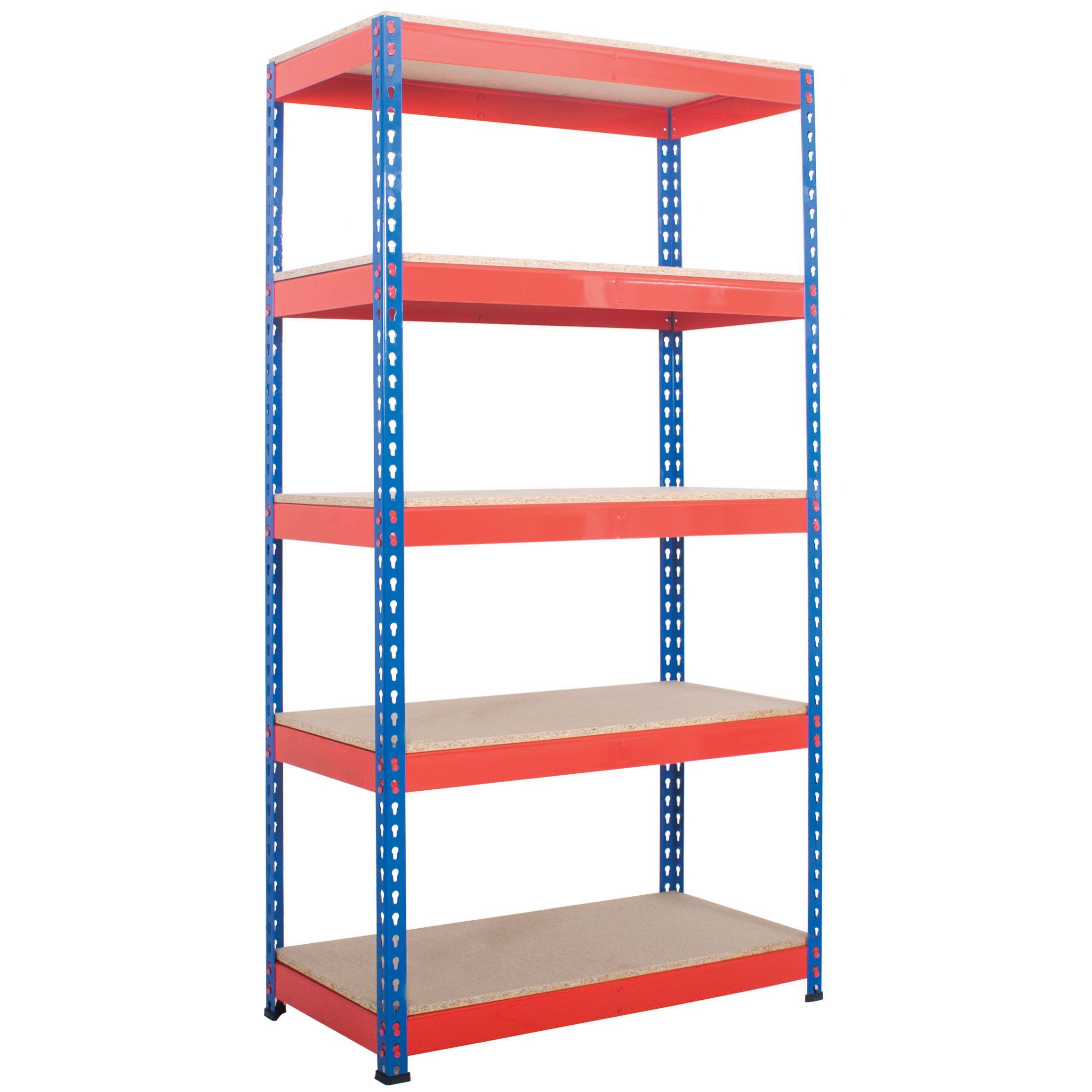

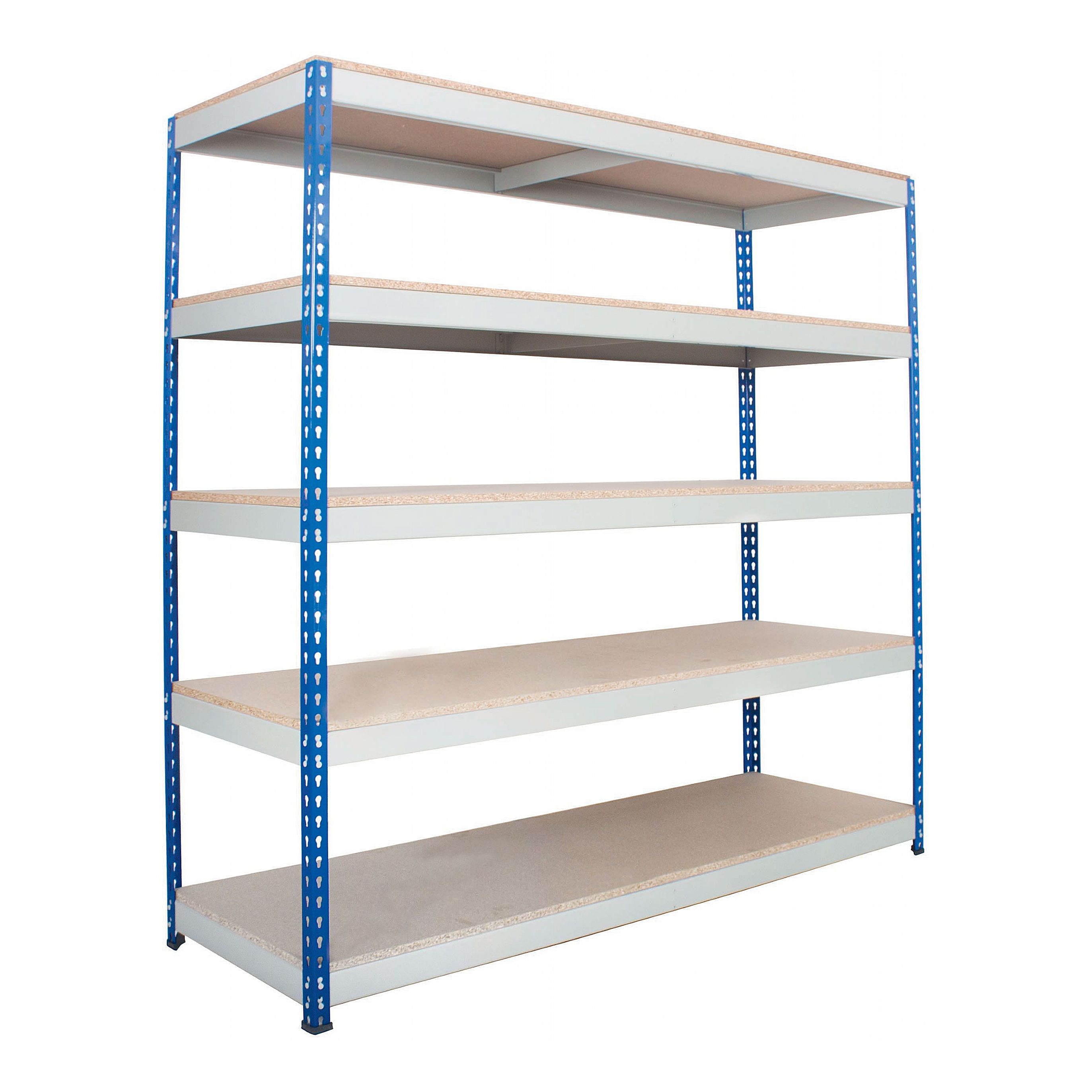

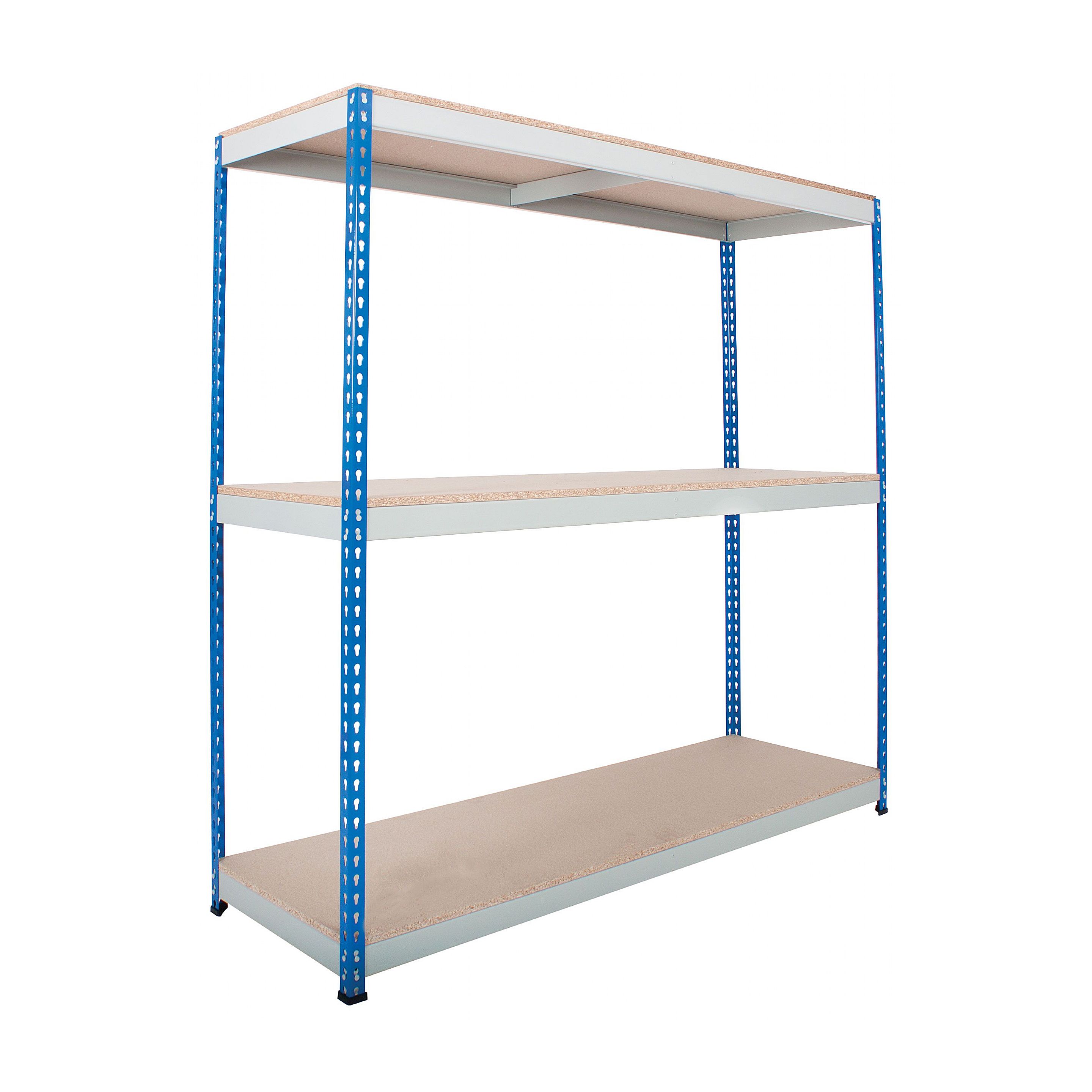

Quick and easy to assemble heavy duty rivet shelving system.
Please note these products are made especially to your request and cannot be cancelled once ordered. Non returnable unless damaged or faulty. Please call our friendly sales team for advice when placing your order if you are unsure 0333 234 4233.
Additional height can be added. For further information please call our friendly sales team on 0333 234 4233
Standard delivery is to ground floor kerbside. Please contact us on 0333 234 4233 if there are vehicle or access restrictions on site.

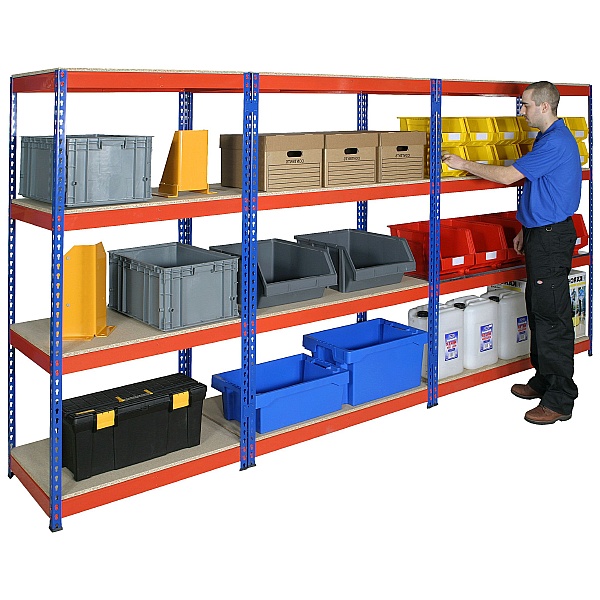

- Heavy duty shelving system ideal for use in storeroom, workshop or warehouse environments.
- Suitable for general shelving, storage or archiving.

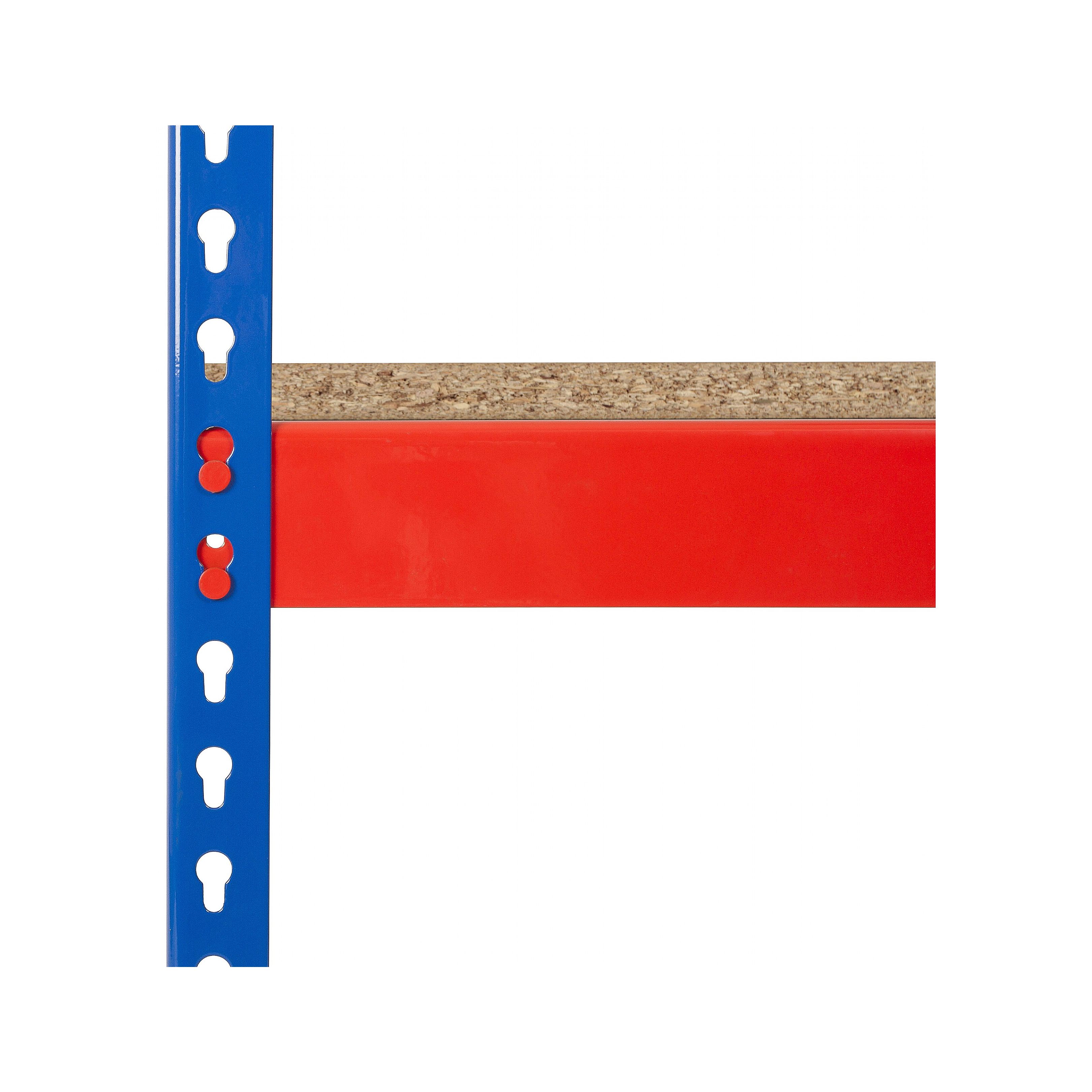

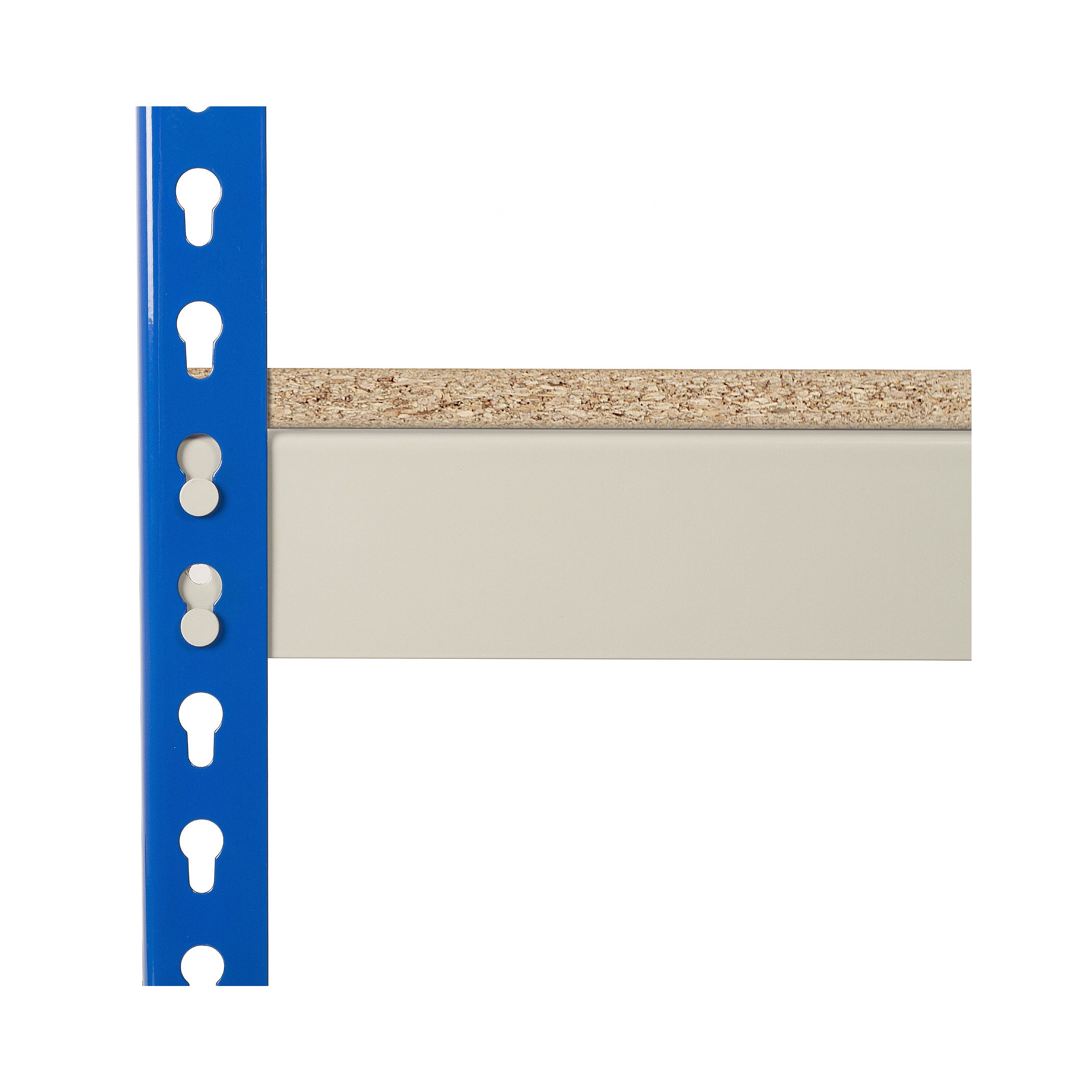

- Steel uprights are blue in colour, shelf trims are either light grey or orange.
- More shelves can be added - please see below in related items.
- For safety and stability the first shelf level must be attached within 200mm from the ground.
- Minimum shelf level height from floor to top of shelf is 125mm.
- Frame made from steel beams and have split uprights for easy handling.
- Unrestricted access from all sides.
- Designed for manual loading and offloading of goods to the shelves using access steps as required for higher shelves.
- Supplied with 15mm chipboard shelves.
- Shelving bay capacity is a maximum of 2800kgs, the load per shelf is between 500-600kgs depending on shelf size, please see table below for details
- Complete bay kit includes uprights, upright connectors, plastic feet, beams, shelf supports and chipboard shelves.
- Tie plates for joining two bays, wall and floor brackets as well as rubber mallet are available separately – see below.
- Supplied flat packed for easy boltless self-assembly using a rubber mallet (not supplied).
- 5 year manufacturers guarantee.
Please note these products are made especially to your request and cannot be cancelled once ordered. Non returnable unless damaged or faulty. Please call our friendly sales team for advice when placing your order if you are unsure 0333 234 4233.
Additional height can be added. For further information please call our friendly sales team on 0333 234 4233
Standard delivery is to ground floor kerbside. Please contact us on 0333 234 4233 if there are vehicle or access restrictions on site.
Dimensions | mm |
Width | 915, 1220 or 1525 |
Depth | 305, 457, 610, 762, 915 or 1220 |
Height | 1830 |
Shelf Width mm | Shelf Capacity kg | Maximum Bay Capacity kg |
915 | 600 | 2800 |
1220 | 550 | 2800 |
1525 | 500 | 2800 |
